PPL Query Builder

The PPL Query Builder gives you a visual editing surface for PPL on the Discover Logs page. You pick fields and values from menus, and the builder compiles the PPL.

It covers a subset of PPL: search, filter, aggregate, and sort. For anything outside that subset, switch to Code mode and write the PPL by hand.

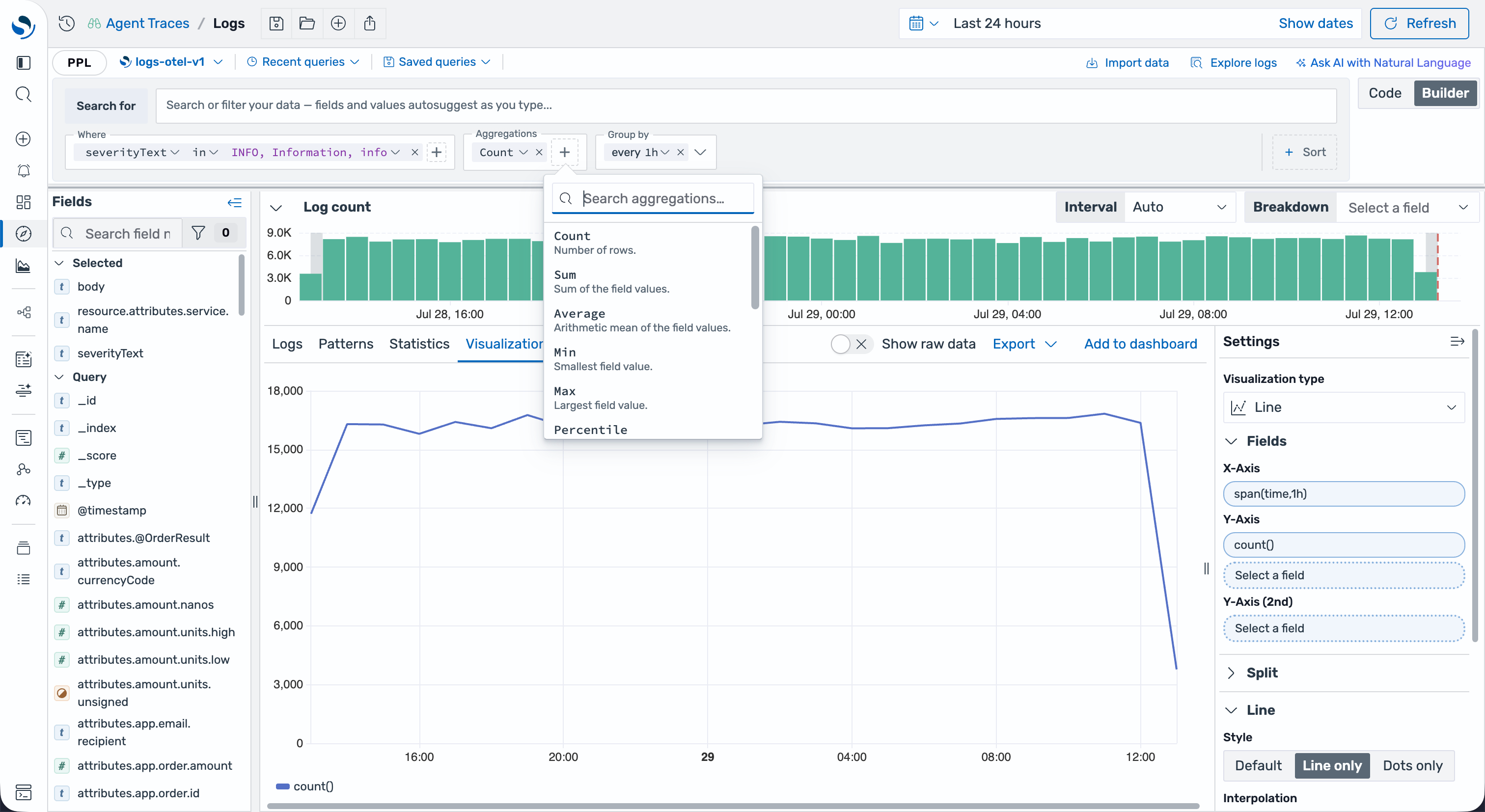

PPL Query Builder on the Logs page, with a Where filter, a Count aggregation, an hourly time bucket, and the aggregation menu open

Builder mode and Code mode

You edit a logs query in one of two modes. The Code / Builder toggle at the upper right of the query panel switches between them.

Mode	Description
Builder	The visual surface: a search box plus Where, Aggregations, Group by, and Sort by controls.
Code	The raw PPL editor, with syntax highlighting and autocomplete. Handles anything the builder cannot represent.

A new logs query opens in Builder mode. A query loaded from a saved search opens in Code mode, and you can switch to Builder from there.

Switching between modes

A query you build in Builder mode moves freely between the two modes. Switch Builder → Code and the editor opens with the PPL the builder generated, so you can build a query by clicking and then read the PPL behind it. Switch back and your builder controls return as they were.

Once you write or edit PPL in Code mode, the query stays in Code. Builder greys out, and its tooltip reads “This query cannot be represented in Builder mode. Simplify it or use Code mode.”

Clear the query bar to start fresh in Builder.

Searching

The Search for box at the top of the builder edits the PPL search expression. A dedicated search-expression grammar drives its autocomplete, so it offers what parses at your cursor:

Field names from the current dataset. Accepting one inserts field= and re-opens the suggestion list.
Live field values for the field you named, pulled from the index.
Operators =, !=, >, >=, <, <=.
Keywords AND, OR, NOT, and IN.

Two conditions side by side with no operator between them combine with AND. Precedence follows PPL: parentheses bind tightest, then NOT, then OR, then AND. This differs from SQL. See search for the details.

Filtering with Where

The Where row holds filter chips, and each chip compiles to one where command. Select Where to add a chip, then pick a field, an operator, and one or more values. The value menu lists live values from the index, so you filter on values you can see.

The field’s mapped type determines which operators you get:

Operator	Applies to	Compiles to
is	any field	`field` = value
is not	any field	`field` != value
is one of	string, number, date, ip, geo	`field` = a OR `field` = b
is not one of	string, number, date, ip, geo	`field` != a AND `field` != b
is between	number, date, ip	`field` >= from AND `field` < to
is not between	number, date, ip	`field` < from OR `field` >= to
exists	any field	ISNOTNULL(`field`)
does not exist	any field	ISNULL(`field`)

Ranges are half-open: from is inclusive, to is exclusive. Fill in one side and the chip emits that single comparison.

Hover a chip to see the predicate it emits. A chip with a field but no value yet contributes nothing to the query and shows “Finish this condition”.

Aggregating

Select Aggregation to add a metric, then Group by to bucket it. Together they compile to a single stats command.

Metrics cover count, sum, avg, min, max, median, percentile, distinct_count, and the standard deviation and variance pairs. Each one that takes a field also offers a Wrap in function menu of math, string, and date functions to apply before aggregating.

Group by one or more fields, and add Over time for a span() time bucket on the dataset’s time field. The builder sizes that interval to your current time range, and you can override it.

Sorting

The Sort control adds a single sort command with a Desc or Asc direction. On a plain query you sort on any field; once the query aggregates, you sort on a column it emits, either a metric such as count() or one of the group-by fields.

Running the query

Select Refresh, or press Cmd/Ctrl + Enter from anywhere in the builder.

Your edits do not run the query as you type. The builder holds the generated query as a draft until you run it, so the results table and histogram keep showing the last query you ran.

Worked example

This builder configuration:

Search for: `resource.attributes.service.name`=frontend-proxy
Where: attributes.http.response.status_code is between 500 and 600
Aggregations: Count
Group by: attributes.url.path, over time every 1m
Sort by: count(), Desc

generates:

`resource.attributes.service.name`=frontend-proxy
| WHERE `attributes.http.response.status_code` >= 500 AND `attributes.http.response.status_code` < 600
| stats count() by `attributes.url.path`, span(time, 1m)
| sort -`count()`

Because the query aggregates, Discover Logs switches to the Visualization tab to chart the result.

Enabling the builder

A server-side setting gates the builder. Add this to opensearch_dashboards.yml:

explore.enabled: true
explore.logsQueryBuilder.enabled: true

Restart OpenSearch Dashboards to apply the change. With the setting off, the Discover Logs page shows the standard PPL query panel.
