Histogram

A histogram chart displays the distribution of a numeric field by grouping values into bins (buckets) and showing the count of values in each bin as vertical bars.

Creating a histogram chart

The following example demonstrates a basic histogram visualization.

Basic histogram

Start with a query that counts values grouped by a numeric field:

source = opensearch_dashboards_sample_data_flights | stats count() by AvgTicketPrice

After running this query, select Histogram as the chart type. The editor maps the field as follows:

• The X-Axis displays the AvgTicketPrice field.

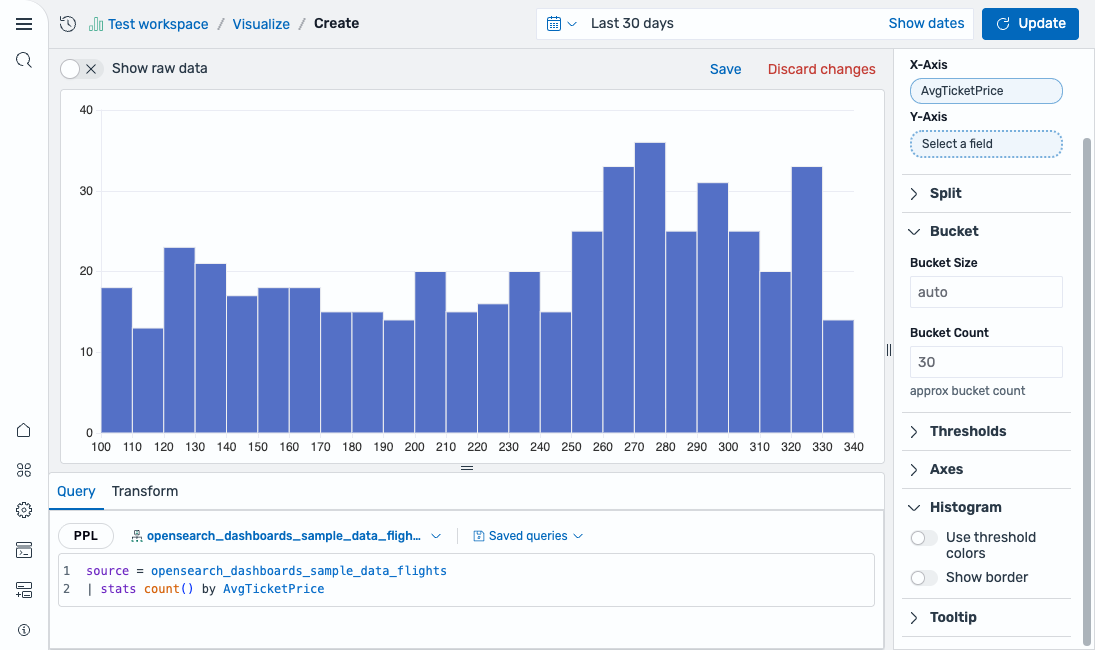

The result is a histogram showing the distribution of ticket prices, as shown in the following image.

Configuring a histogram chart

You can configure the following settings in the configuration panel.

Fields

In the Fields section, configure the fields displayed on each axis.

Field	Description
X-Axis	Select a numeric field to distribute into buckets along the horizontal axis.
Y-Axis	Select a numeric field for the vertical axis. If left blank, the chart displays the count of values in each bucket.

Split

In the Split by dropdown list, select a field to split the chart into separate elements by value. For more information, see Split.

Bucket

The following settings control how data is grouped into bins.

Setting	Description
Bucket Size	Sets the width of each bin. Enter a numeric value or leave as auto to let the editor calculate an appropriate size.
Bucket count	Sets the maximum number of bins to display.

Thresholds

For information about configuring thresholds, see Thresholds.

Axes

The X-axis and Y-axis share the same configuration options. For more information, see Axes.

Histogram

Use the following settings to customize the appearance of the histogram.

Setting	Description
Use threshold colors	When enabled, colors bars based on threshold ranges.
Show border	When enabled, adds a border around each bar.

Tooltip

Toggle the Show tooltip selector to enable or disable tooltips.
