Pie chart

A pie chart displays data as proportional slices of a circle, making it ideal for visualizing part-to-whole relationships.

Creating a pie chart

The following examples build on each other, starting with a basic chart and adding customization.

Basic pie chart

Start with an aggregation query that counts events by category:

source = opensearch_dashboards_sample_data_flights | stats count() by Carrier

After running this query, change the chart type to Pie in the visualization type selector. The visualization editor then maps the fields automatically:

• The Size displays the count() field.
• The Color displays the Carrier field.

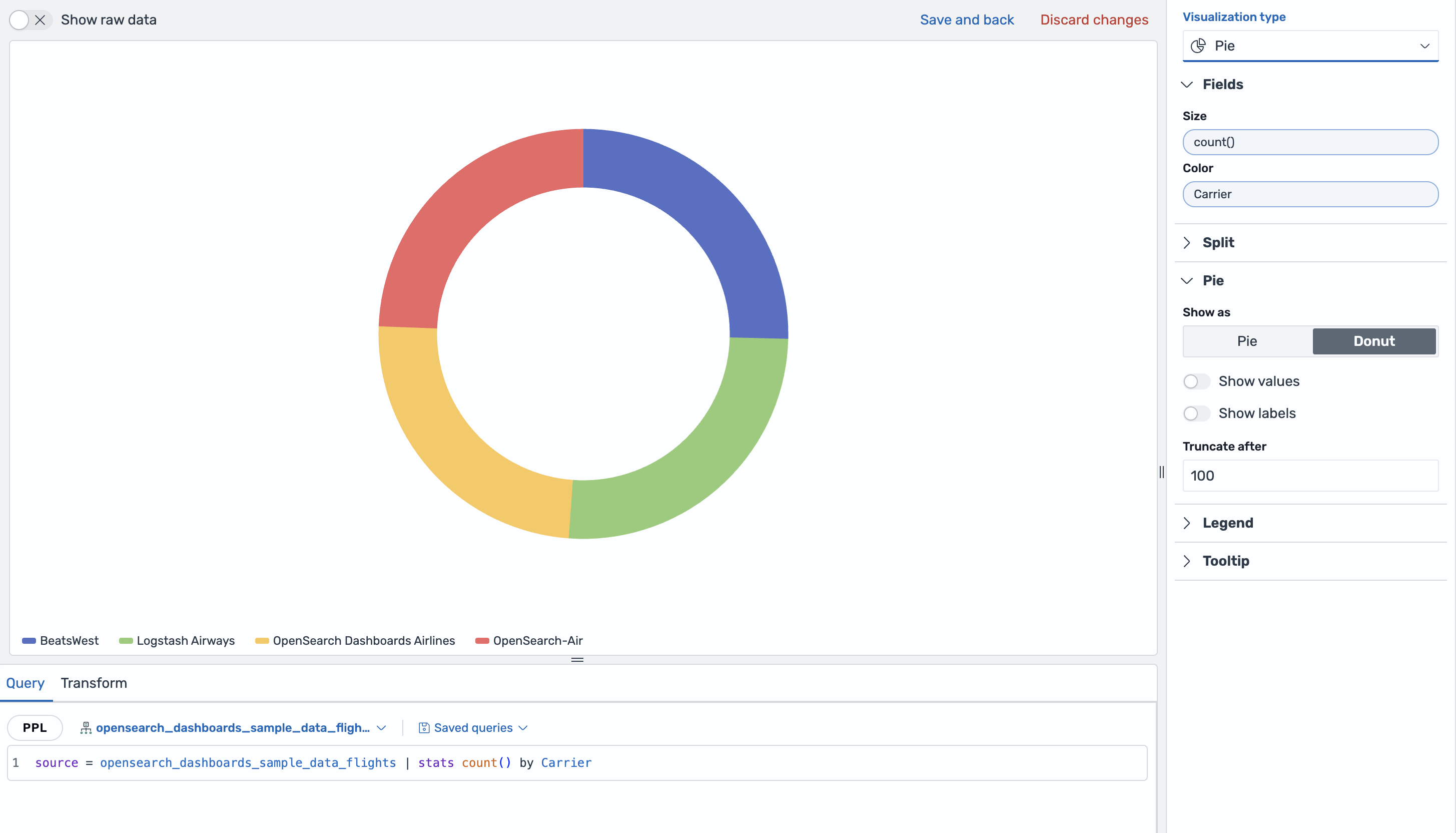

The default rendering is a Donut chart. Each airline carrier appears as a colored slice proportional to its event count, as shown in the following image.

Customizing the pie chart

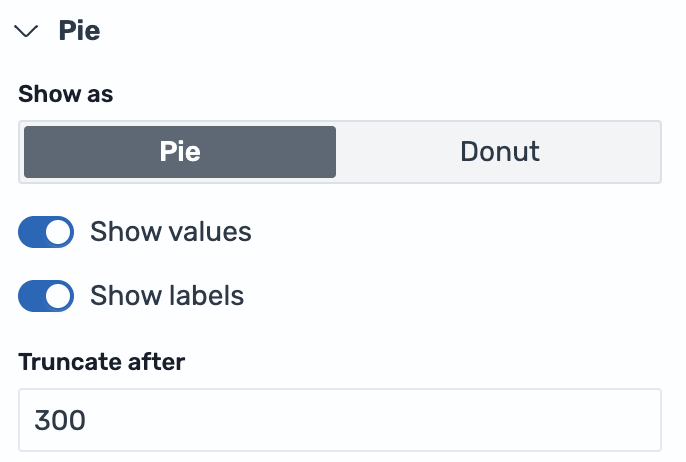

Open the Pie settings panel and configure the following options:

1. Change Show as from Donut to Pie to render a full circle without a center hole.
2. Enable Show values to display the count on each slice.
3. Enable Show labels to display the carrier name alongside each slice.
4. Set Truncate after to 300 for longer label text, as shown in the following image.

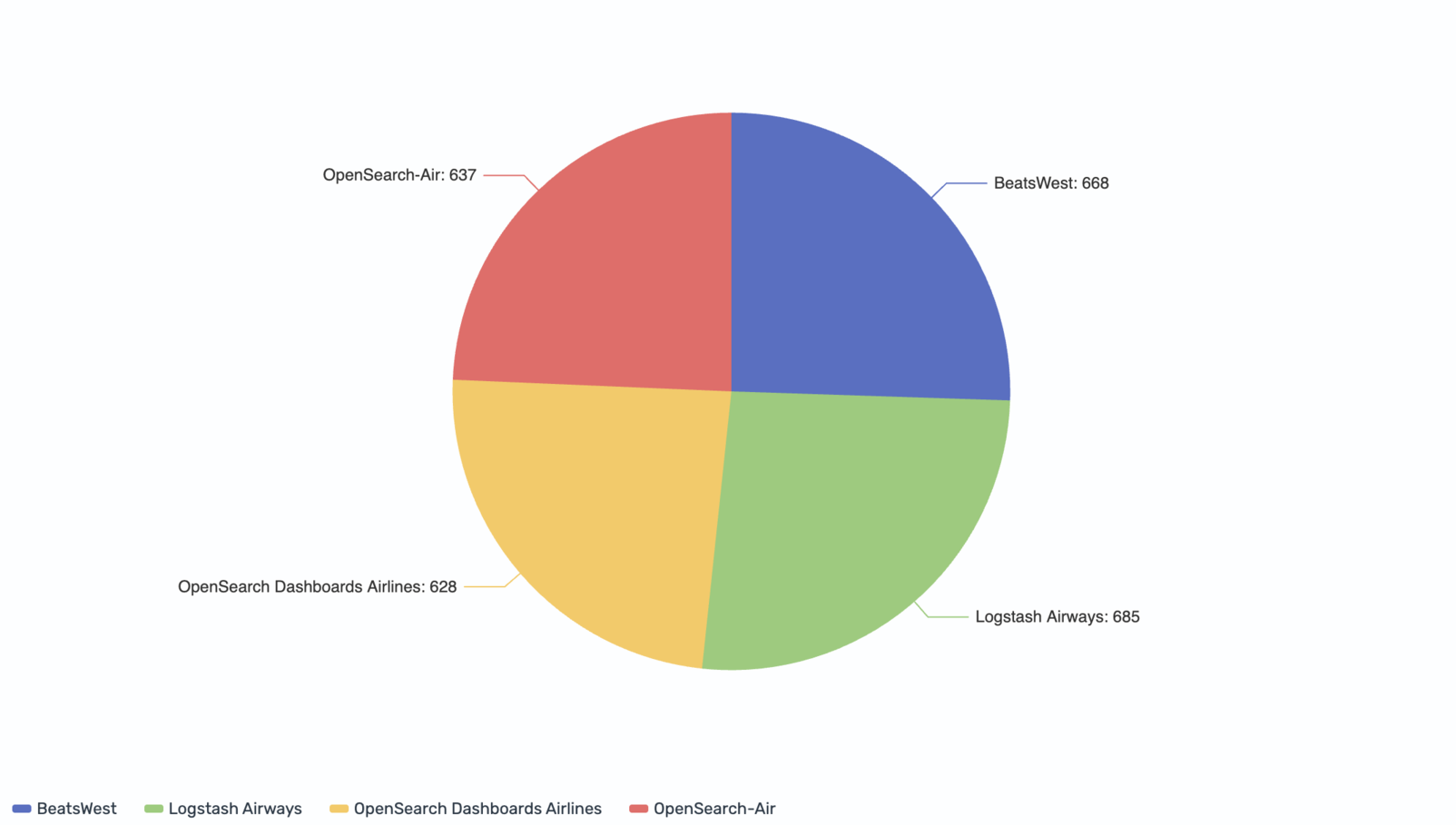

The result is a full pie chart with both category labels and numeric values displayed on each slice, as shown in the following image.

Configuring a pie chart

You can configure the following settings in the configuration panel.

Fields

In the Fields section, configure the data fields.

Field	Description
Size	Select a numeric field that determines the size of each slice. For example, count() makes each slice proportional to the number of events in that category.
Color	Select a categorical field that splits the data into individual slices, each rendered in a different color. For example, use a Carrier field to display a slice for each airline.

Split

In the Split by dropdown list, select a field to split the chart into separate elements by value. For more information, see Split.

Pie

The following table describes the pie chart settings.

Setting	Description
Show as	Controls whether the chart renders as a full pie or a Donut (ring) shape. Donut is the default.
Show values	When enabled, shows the numeric value for each slice on the chart.
Show labels	When enabled, shows the category label for each slice on the chart.
Truncate after	Sets the maximum width in pixels for labels before truncation. Only visible when Show labels is enabled.

Legend

The legend summarizes the visual color encodings used in the chart.

Setting	Description
Show legend	Shows or hides the legend.
Position	Controls where the legend appears relative to the chart. Supported values: Left, Right, Top, Bottom.

Tooltip

Toggle the Show tooltip selector to enable or disable tooltips.
